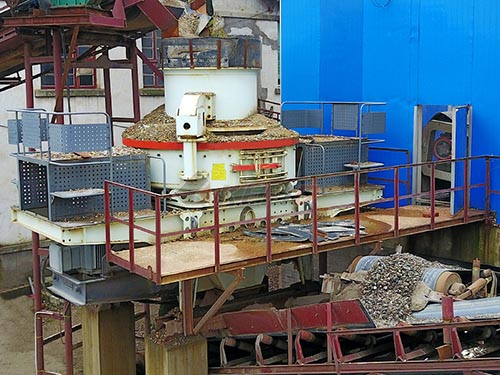

A Deep Rotor VSI (Vertical Shaft Impactor) Crusher is an advanced type of sand-making and rock-crushing equipment designed for high-efficiency fine crushing and shaping. It is widely used in mining, construction, cement, metallurgy, and other industries for producing high-quality aggregates, sand, and cubical-shaped particles.

Key Features of Deep Rotor VSI Crusher:
1. Deep Rotor Design
– The rotor is deeper than conventional VSI crushers, allowing for higher throughput capacity and better material acceleration.
– Enhances crushing efficiency by increasing the impact force on materials.

2. High Crushing Efficiency
– Optimized crushing chamber design ensures better particle shape (cubical) and reduced flakiness.
– Capable of handling hard and abrasive materials like granite, basalt, and iron ore.

3. Low Wear & Maintenance
– Uses wear-resistant materials (e.g., tungsten carbide) for key components like the rotor tips and anvils.
– Reduced downtime due to longer service life of wear parts.

4. Adjustable Particle Size Control
– The final product size can be adjusted by changing rotor speed, feed rate, or cascade ratio.
– Ideal for producing fine sand (0-5mm) or coarser aggregates (5-20mm).

5. Versatile Applications
– Suitable for tertiary or quaternary crushing stages in aggregate production.
– Used in artificial sand manufacturing (replacing natural sand).
– Effective in recycling applications (concrete, glass).

6. Energy Efficient
– Operates at lower power consumption compared to traditional crushers while maintaining high output.

Working Principle:
– Material is fed into the crusher through the hopper.
– The high-speed rotating rotor throws the material against the surrounding anvils or rock shelves.
– Impact forces break the material into smaller particles with a well-graded shape.
– Adjustable cascading flow controls the crushing intensity.

Advantages Over Traditional Crushers:
✔ Higher production capacity with less energy consumption.
✔ Better product shape (more cubical vs. flaky).
✔ Lower operating costs due to reduced wear rates.
✔ Suitable for both soft and hard materials.

Common Applications:
– Sand making for concrete & asphalt production.
– Fine crushing in mining operations.
– Aggregate shaping in road construction.
– Recycling of construction waste.

Would

The HPT Cone Crusher (High-Performance Hydraulic Cone Crusher) is an advanced crushing machine designed for high productivity, energy efficiency, and fine crushing performance. It is widely used in mining, aggregate production, and industrial milling applications.

Key Features of HPT Cone Crusher:
1. Advanced Hydraulic System
– Enables automatic adjustment of the discharge opening and overload protection, ensuring stable operation and reducing downtime.

2. High Crushing Efficiency
– Optimized cavity design and higher speed improve crushing ratio and output while maintaining good particle shape.

3. Multi-Cylinder Hydraulic Structure
– Provides stronger crushing force compared to traditional spring cone crushers, improving handling capacity for hard materials.

4. Intelligent Control System
– Equipped with an automated control panel for real-time monitoring and adjustments, enhancing operational safety and efficiency.

5. Low Maintenance & Long Service Life
– Durable components (e.g., high-quality alloy steel frame) reduce wear and extend lifespan.

6. Versatile Applications
– Suitable for secondary, tertiary, and quaternary crushing stages in mining (iron ore, granite, basalt) and aggregate production.

Technical Parameters (Example Model: HPT300)
| Parameter | Specification |
|–||
| Max Feed Size | ≤230mm |
| Capacity | 120-700 t/h |
| Power | 315 kW |
| Discharge Range | 19-51mm (adjustable) |

Advantages Over Traditional Cone Crushers:
✔ Higher throughput with lower energy consumption
✔ Better particle shape for aggregates
✔ Smoother operation with hydraulic cushioning
✔ Easier maintenance with modular design

Common Applications:
– Mining (metal/non-metal ores)
– Construction aggregates (sand & gravel)
– Industrial minerals processing
– Quarrying operations

Would you like details on a specific model or application?

The HST Hydraulic Cone Crusher is a high-efficiency crusher designed for mining, construction, and aggregate production. It integrates mechanical, hydraulic, electrical, automation, and intelligent control technologies to provide superior crushing performance. Below are its key features and specifications:

Key Features:
1. Advanced Hydraulic System
– Fully automatic hydraulic adjustment for discharge opening, ensuring consistent product size.
– Overload protection to prevent damage from uncrushable materials.

2. High Crushing Efficiency
– Optimized cavity design and higher speed for improved reduction ratio and output.
– Suitable for secondary and tertiary crushing of hard and abrasive materials.

3. Intelligent Control
– Equipped with an automated control system (PLC) for real-time monitoring and adjustments.
– Remote operation capability reduces manual intervention.

4. Robust Structure
– Heavy-duty frame ensures durability under high-load conditions.
– High-quality wear-resistant materials extend service life.

5. Low Operating Costs
– Energy-efficient motor reduces power consumption.
– Easy maintenance with accessible components.

Technical Specifications (Example Model: HST315):
| Parameter | Specification |
|–||
| Max Feed Size | ≤370 mm |
| Capacity | 259–635 t/h |
| Power | 315 kW

|
| Discharge Range | 19–51 mm |
| Weight | ~41,000 kg |

Applications:
– Mining (iron ore, copper, gold, etc.)
– Quarrying (granite, basalt, limestone)
– Construction aggregates
– Industrial minerals processing

Advantages Over Traditional Cone Crushers:
✔ Higher throughput with less downtime
✔ Better particle shape and gradation control
✔ Safer operation with hydraulic clearing

For detailed technical data or model selection, consult the manufacturer’s documentation based on your specific requirements. Would you like assistance with installation or operational guidelines?

A Spring Cone Crusher is a type of secondary or tertiary crushing equipment widely used in mining, metallurgy, construction, and aggregate production. It is designed to crush hard and medium-hard materials like iron ore, limestone, granite, basalt, and quartz.

Key Components & Working Principle
1. Crushing Chamber: Consists of a fixed concave (outer liner) and a movable mantle (inner cone) that gyrates under eccentric motion.
2. Spring Safety System: A set of springs around the frame acts as an overload protection mechanism. If uncrushable material enters the chamber, the springs compress to widen the discharge opening and release the foreign object, preventing damage.
3. Eccentric Shaft & Rotation: Driven by a motor via belts/pulleys, the eccentric shaft causes the mantle to oscillate, crushing material against the concave.
4. Discharge Adjustment: The gap between the mantle and concave can be adjusted to control output size (coarse to fine).

Advantages
– Reliable Overload Protection: Springs absorb shock from tramp iron or hard materials.
– High Crushing Efficiency: Suitable for medium/fine crushing with good particle shape.
– Simple Structure & Low Maintenance: Fewer hydraulic components compared to hydraulic cone crushers.

Limitations
– Less automated than hydraulic cone crushers (e.g., no real-time

justment).
– Lower capacity compared to modern hydraulic models for large-scale operations.

Applications
– Mining (iron ore, copper ore).
– Quarrying (limestone, granite).
– Road construction aggregates.

Comparison with Hydraulic Cone Crusher
| Feature | Spring Cone Crusher | Hydraulic Cone Crusher |
|–|–|–|
| Overload Protection | Mechanical springs | Hydraulic cylinders |
| Adjustment | Manual | Automatic (hydraulic) |
| Cost | Lower | Higher |
| Automation | Limited | Advanced (e.g., PLC control)|

For modern high-capacity or automated crushing plants, hydraulic cone crushers are often preferred. However, spring cone crushers remain cost-effective for small-to-medium operations requiring robustness and simplicity.

Would you like details on specific models or maintenance tips?

A CS Cone Crusher (short for Cone Crusher, Symons type) is a high-efficiency spring cone crusher developed based on the principles of laminating crushing and multi-breaking with less grinding. It is widely used in mining, metallurgy, construction, road building, and chemical industries for crushing hard and medium-hard materials like iron ore, copper ore, limestone, quartz, granite, basalt, and more.

Key Features of CS Cone Crusher:
1. High Efficiency & Performance
– Optimized crushing cavity design ensures higher capacity and better product shape.
– Suitable for secondary and tertiary crushing stages.

2. Reliable Hydraulic Adjustment & Overload Protection
– Hydraulic system for easy adjustment of discharge opening.
– Automatic overload protection prevents damage from uncrushable materials.

3. Stable Structure & Durable Components
– Reinforced main frame and high-quality alloy steel components ensure long service life.
– Advanced sealing system reduces dust contamination.

4. Good Particle Shape
– Laminated crushing principle produces well-shaped cubic end products.

5. Easy Maintenance
– Modular design allows quick replacement of wear parts.
– Simple hydraulic or manual adjustment options.

Technical Parameters (Example Models)
| Model | Max Feed Size (mm) | Discharge Range (mm) | Capacity (t/h) | Motor Power (kW) |
|-|-|-|-||
| CS75 | ≤115 | 9-38 | 45-91 | 75 |
| CS160 | ≤178 | 13-38 | 72-172 | 160 |
| CS240 | ≤240 | 19-51 | 181-327 | 240 |

Applications
– Secondary & tertiary crushing in mining and aggregates.
– Crushing hard rocks in quarrying operations.
– Construction waste recycling.
– Cement and chemical industries.

Comparison with Other Crushers
– Compared to a Jaw Crusher, the CS Cone Crusher provides finer output but requires a primary crusher first.
– Compared to an Impact Crusher, it offers better particle shape but may have higher wear costs in abrasive conditions.

Would you like details on installation, operation, or troubleshooting?

An Impact Crusher is a type of crushing machine that uses impact force to break down materials. It is widely used in mining, construction, and recycling industries to crush rocks, concrete, and other hard materials into smaller, more manageable sizes.

How Does an Impact Crusher Work?
1. Feeding: Material enters the crusher through a feed hopper.
2. Rotor & Blow Bars: A high-speed rotor with attached blow bars (hammers) strikes the incoming material.
3. Impact Crushing: The material is thrown against impact plates (or aprons), where it breaks due to the force of impact.
4. Adjustable Settings: The gap between the rotor and impact plates can be adjusted to control the output size.
5. Discharge: Crushed material exits through the discharge opening.

Types of Impact Crushers
1. Horizontal Shaft Impact Crusher (HSI)
– Uses a horizontal rotor with blow bars.
– Ideal for softer materials like limestone and recycled concrete.
– Commonly used in aggregate production.

2. Vertical Shaft Impact Crusher (VSI)
– Uses a vertical rotor with high-speed impellers.
– Produces finely shaped cubical aggregates (sand-making).
– Often used in sand production and fine crushing.

Advantages of Impact Crushers
✔ High reduction ratio (up to 20:1)
✔ Good particle shape (cubical output)
✔ Versatile for soft to medium-hard materials
✔ Lower operational costs compared to jaw or cone crushers

Common Applications
– Quarrying & mining (limestone, granite, etc.)
– Recycling (concrete, asphalt demolition waste)
– Aggregates production for construction
– Sand manufacturing (VSI crushers)

Limitations
❌ Not ideal for very hard or abrasive materials (e.g., basalt) without wear-resistant linings.
❌ Higher wear on blow bars and impact plates compared to compression crushers.

Would you like details on maintenance, specific brands, or comparisons with other crushers?

A Secondary Impact Crusher is a type of crushing machine used in aggregate production, recycling, and mining operations to reduce the size of materials after primary crushing. It is designed to handle softer to medium-hard materials (e.g., limestone, asphalt, concrete, demolition waste) and produce a more uniform, cubical end product compared to primary crushers.

Key Features of a Secondary Impact Crusher:
1. Purpose:
– Further reduces material size after primary crushing (e.g., jaw or gyratory crusher).
– Ideal for producing high-quality, well-shaped aggregates for construction (roads, concrete).

2. Working Principle:
– Uses high-speed impact forces (rotor with hammers/blow bars) to break materials.
– Material is fed into the crushing chamber and struck by rotating blow bars before being thrown against impact aprons/liners for additional fragmentation.

3. Advantages:
– Produces a more uniform, cubical product (better for asphalt and concrete).
– Higher reduction ratio than cone crushers in certain applications.
– Adjustable output size via hydraulic or mechanical settings.
– Handles moderately abrasive materials efficiently.

4. Disadvantages:
– Higher wear on blow bars compared to compression crushers (e.g., cone crushers).
– Not ideal for very hard or highly abrasive materials (e.g., granite).

5. Common Applications:
– Crushing limestone, recycled concrete, asphalt, and demolition debris.
– Aggregate production for road base, railroad ballast, and construction fill.

6. Types of Secondary Impact Crushers:
– Horizontal Shaft Impactors (HSI): Most common for secondary crushing; material is fed horizontally into the rotor.
– V

ical Shaft Impactors (VSI): Used for shaping and fine crushing (more common in tertiary stages).

Comparison with Other Crushers:
| Feature | Secondary Impact Crusher | Cone Crusher | Jaw Crusher |
||-|–|-|
| Crushing Method | Impact force | Compression | Compression |
| Output Shape | Cubical | Flaky/Elongated | Variable |
| Wear & Cost | Higher wear on blow bars | Lower wear parts | Moderate wear |
| Best

A Primary Impact Crusher is a heavy-duty machine used in the first stage of crushing (primary crushing) to break large rocks, ores, or other hard materials into smaller, more manageable pieces. Unlike jaw crushers, which use compression force, impact crushers utilize high-speed impact to fracture materials.

Key Features of Primary Impact Crushers:
1. High Reduction Ratio – Capable of reducing large feed sizes (up to 1-2 meters) into smaller fragments in a single pass.
2. Horizontal Shaft Design – Uses rotating hammers or blow bars to strike and throw material against breaker plates.
3. Versatility – Can handle soft to medium-hard rocks (limestone, gypsum, coal) and some abrasive materials.
4. Adjustable Output Size – The gap between the rotor and impact aprons can be adjusted to control product size.
5. High Throughput Capacity – Suitable for high-production quarrying, mining, and recycling applications.

Advantages Over Other Primary Crushers:
– Better cubical-shaped end product compared to jaw crushers.
– Higher reduction ratio in a single stage.
– Effective for softer materials where compression crushers may generate excessive fines.

Common Applications:
– Quarrying & Aggregates (limestone, gravel)
– Cement Industry (crushing raw materials)
– Recycling (concrete, asphalt demolition waste)
– Mining (primary reduction of ore)

Popular Models & Manufacturers:
– Metso Nordberg NP Series
– Sandvik CI Series
– Hazemag AP-PH Series
– Kleemann MR 110/130 EVO

Considerations When Choosing a Primary Impact Crusher:
✔ Feed size & material hardness
✔ Desired output size & production capacity
✔ Maintenance requirements (wear parts like blow bars)
✔ Energy efficiency & operating costs

Would you like recommendations based on a specific application or material?

A jaw crusher is a primary crushing machine used in mining, quarrying, and construction industries to reduce large rocks, ores, or other hard materials into smaller, more manageable pieces. Here’s a detailed breakdown:

How It Works
1. Crushing Mechanism:
– A jaw crusher consists of two vertical jaws—one fixed (stationary) and one movable (swing jaw).
– The movable jaw exerts force on the material by pressing it against the fixed jaw.
– Material is crushed progressively until small enough to pass through the bottom gap (discharge opening).

2. Key Components:
– Fixed Jaw Plate: Attached to the crusher frame.
– Movable Jaw Plate: Driven by an eccentric shaft (pitman) that creates an elliptical motion.
– Toggle Plate: Safety mechanism to protect the crusher from overload.
– Flywheel: Stores energy for consistent crushing force.

Types of Jaw Crushers
1. Blake (Double Toggle): Older design with a pivoted swing jaw; robust but less efficient.
2. Dodge (Single Toggle): Movable jaw pivots at the bottom; simpler but limited in capacity.
3. Universal (Overhead Eccentric): Modern single-toggle design with higher efficiency and adjustability.

Applications
– Primary crushing of hard materials (granite, basalt, iron ore).
– Recycling concrete and demolition waste.
– Laboratory-scale crushing for research.

Advantages
– Simple structure, low maintenance.
– High reduction ratio (typically 6:1 to 8:1).
– Handles abrasive materials well.

Disadvantages
– Less efficient than gyratory crushers for high-capacity needs.
– Wear-prone parts (jaw plates) require regular replacement.

Maintenance Tips
– Regularly check jaw plates for wear and replace as needed.
– Lubricate bearings and eccentric shafts to prevent overheating.
– Monitor discharge settings to ensure optimal particle size output.

Would you like details on sizing, operational parameters, or comparisons with other crushers (e.g., cone/impact)?

The JC Series Jaw Crusher is a modern, high-performance primary crushing machine designed for tough and abrasive materials. It is widely used in mining, quarrying, construction, and recycling industries due to its robust structure, efficiency, and reliability. Below are its key features, advantages, and applications:

Key Features:
1. Advanced Crushing Technology
– Optimized cavity design and motion dynamics for higher capacity and better reduction ratio.
– Deep “V” crushing chamber minimizes blockages and enhances throughput.

2. Durable Construction
– High-quality materials (e.g., heavy-duty cast steel frame, forged eccentric shaft) ensure longevity.
– Bolted (non-welded) frame design reduces stress concentrations.

3. Adjustable Discharge Setting
– Hydraulic or mechanical adjustment options for quick and precise gap settings.

4. Safety & Maintenance
– Easy-to-replace wear parts (jaw plates, toggle plates).
– Centralized lubrication system for smooth operation.

5. Energy Efficiency
– Low power consumption per ton of crushed material.

Advantages:
– Higher crushing capacity compared to traditional jaw crushers.
– Reliable performance in extreme conditions (hard rock, recycled concrete).
– Reduced downtime due to simplified maintenance.
– Compatible with automated control systems (e.g., PLC).

Technical Specifications (Example Models):
| Model | Feed Opening (mm) | Max Feed Size (mm) | Capacity (t/h) | Power (kW) |
|-|-|–|-||
| JC110 | 1100×850 | 930 | 150–300 | 90–110 |
| JC130 | 1300×1000 | 1100 | 250–500 | 160–200 |

*(Exact specs vary by manufacturer; consult product manuals.)*

Applications:
– Primary crushing of granite, basalt, iron ore, limestone.
– Demolition waste recycling.
– Aggregates production for construction.

Manufacturers:
Leading brands offering JC Series crushers include:
– Liming Heavy Industry (China)
– Sandvik *(similar “Jawmaster” series)*
– Metso/Nordberg *(C-Series equivalents)*

Would you like details on installation, operation tips, or comparisons with other jaw crusher types? Let me know how I
